Product Details:
Payment & Shipping Terms:
|
| Product Name: | Switching Power Supply | Input Voltage: | 100-240v |
|---|---|---|---|
| Output: | 5V 3A 9 V2A 24V 1A | AC Cable: | 1.5m Standard |
| AC Plug: | US EU UK CN JP | AC Inlet: | C6 C8 C14 |
| DC Cable: | 1.5 M Standard | Package: | White Box + Carbon |
| High Light: | desktop ac adapter,notebook ac adapter |
||

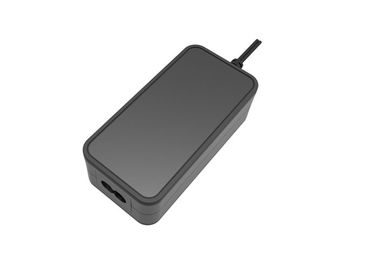

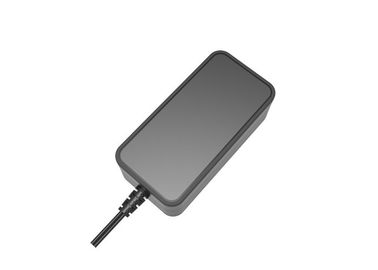

5V 3A 9V 2A 24V 1A universal AC DC desktop switching power adapter
Brief Description:
The 18W and 24W desktop power suuply is single output level and has designed highly relaible and meet international safety and high quality standard.The adapters have widely used in POS system,CCTV,printer,LCD display,game player andothers.
key Specification:
| Input | Rated input voltage | 100-240V |
| Input voltage range | 90-264V | |
| Rated frequency | 50-60HZ | |
| Input frequency range | 47-63HZ | |
| Input AC current | 1.5A max | |
| Inrush current |
30A max (36w) |
|
| Output | Rated output voltage | 5-24V |
| Rated output current | 1-3A | |
| Rated power | 18W 24W | |
| Ripple and noise | 120mVp-p | |
| Standby power consumption | 0.1W max | |
| Turn on | 3S | |
| Hold up | 6S | |
| OVP | Yes | |
| OCP | Yes | |
| Short Circuit prodection | Yes | |
| Reliability | Hi pot | 3000Vac |
| Burn In | 4 hours at full load | |
| Leakage current | 0.25ma | |
| EMI standards | FCCpart 15 | |
| Quality standard | ISO9001 | |
| MTBF | 50000 hours | |
| Drop test | Yes | |
| Insulation resistance | <30M ohms | |
| Environmental | Operating temperature | 0-40 degrees |
| Operating humidity | 20-90% | |
| Storge temperature | -20-80 degrees | |
| Storge humidity | 0-95% | |
| Safety approvals | ETL FCC CE GS KA CCC PSE | |
| Warranty | 2 years | |
Features:
1. High efficiency:>83% at least
2. Safety licences:main approvals of the world are available
3. Burn in:100% full load
4. MTBF:50000 hours
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. 2pcs free samples are available and we are free of the airfreight by UPS Fedex.
2. High quality standard requested;all adapters must meet safety approvals,RoHS requirements and quality management system.
3. Good lead time, we have around 500 employees and 10 production lines to manage our lead time is within 15 days.
4. Prefect after-sale service,we have QE team to provide the best service to all customers.
5. OEM is always available. We have experienced R / D team to design good adapters according to customers need.
Desk top universal power adapter:
