Product Details:
Payment & Shipping Terms:
|
| Color: | White/black | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| MTBF: | 50000hours | Material: | PVC |
| Product Name: | Ac Adapter | Place Of Origin: | China |
| Output Power: | 24W | AC Plug: | US |
| High Light: | ac dc charger adapter,universal power adapter travel |
||

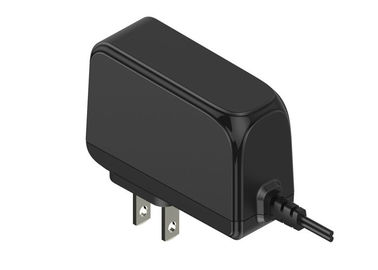

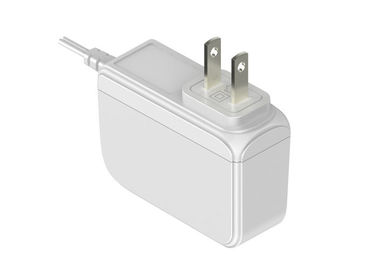

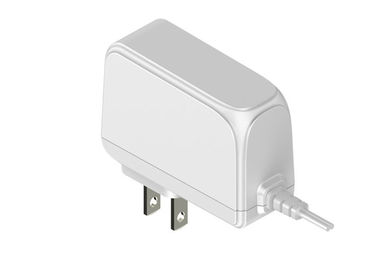

Black / White AC DC Power Adapter 2 Prong 12V 2A US Plug Switching Power Supply
2A US 2PIN wall mount adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white / black
Safety licences:ETL/ FCC/PSE/CE/KA
Connection:plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. We have our own materials producing department, so our cost is much better.
2. We strictly follow up ISO9001 and ISO14001 as our quality management system.
3. Our lead time is 15 days after confirmed the PO
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours.
6. Prefect after - sales service should be provided by our QE.
7. This adapter has pass ETL/ CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R /D team has 20 experience and we have professional management in QC, purchasing and production.
9. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
10. Our monthly production capacity is 100,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
12V 2A wall mount adapter
