Product Details:
Payment & Shipping Terms:
|
| Product Name: | AC Wall Mount Adapter | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Input: | 100-240v | Output: | 18W |
| Package: | White Box + Carbon | DC Cable: | 1.5m Standard |
| High Light: | wall plug power adapter,wall mount power supply |
||
EN60950 EU plug black universal AC power adapter with CE / GS / EMC for EU market
18W EU 2PIN wall mount adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:1500MA
Colour:white / black
Safety licences: FCC CE GS PSE CCC
Connection:EU plug in
DC cable:1.5m
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 1500MA | |
| Ripple: | 120mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Competitive advantage:
1. Good pricing:We will adjust the pricing according to the order quantity.
2. High quality standard:we always focus on the quality and fellow ISO 9001 and RoHS
3. Better lead time:15 days is our delivery day after confirmed the purchasing order.
4. Professional R/D team:we have good adaptersa and OEM ODM are available.
5. Quick response to customer’s requirement
6. Our QE department handle any problem from customers.
7. This adapter has pass CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. The most important is our pricing and service is much better than other adapter suppliers.
9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
10. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
11. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
12. We have some contracted forwarders and offer the best shipping cost to all custoers through oceanand air freight.
13. Our goal is that we are your long tern business partner and Win - Win together!
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toy |

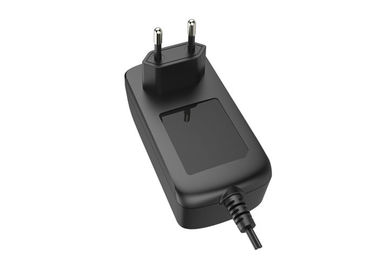

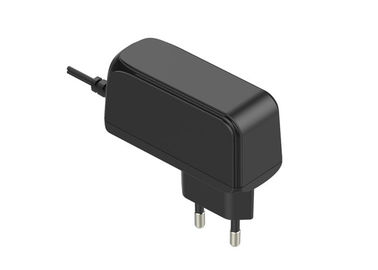

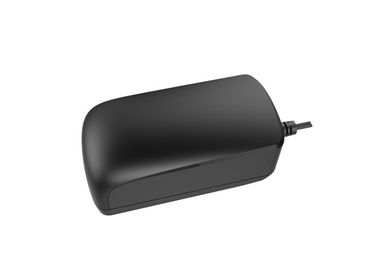

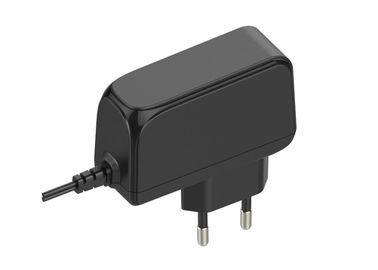

12V 1.5A EU plug wall mount adapter picture:
