Product Details:
Payment & Shipping Terms:
|
| Product Name: | Interchangeable Adapter | Input: | 90-264 Vac |
|---|---|---|---|
| Output Voltage: | 5-24v | Output Current: | 0.5a - 3.0a |
| Color: | Black White | Burn In: | 100% Full Load At 115 VAC For 4 Hours |
| Plug: | EU US UK CN JP AU | Material: | PC+ABS |
| DC Cable: | 1.2M 1.5M 1.8M | Package: | White Box + Carbon |
| Highlight: | universal power adapter,universal ac charger |
||
Interchangeable Plugs 15W - 24W Wall Mount AC adapter for router,CCTV digital camera
The interchangebale wall mount adapter has a univeral input voltage 90 - 264VAC and frequency range 47 - 64 Hz, the output current max 3000Ma, the safety certificates is FCC CE GS CCC PSE and EMC, the adapter has US, EU UK CN JP AU plugs.
Features of the interchangebale plugs 15W - 24W adapter:
1. Interchangebale plug:US UK EU CN JP AU KC
2. Compact size and light weight
3. High efficiency and low consumption
4. Full protection functions:OVP OCP OTP
5. Built -in EMI filter, low ripple and noise
6. 100% full load for 4 hours burn-in test
7. 2 years warranty
8. All materials meet RoHS standards
Main Parameters of the interchangeable 15W - 24W adapter
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 5-24V |
| Current range: | 05-3.0A | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
What we can privide:
1. We have international quality standard much as ISO9001 and ISO 14001 to guarantee each adapter god quality.
2. Our adapters have passed CE GS PSE EMC KA CCC SAA safety approvals and the quality is very good, also the efficiency can meet energy star requirements.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
4. We have our own products ,but we also offer OEM and ODM to customers who are from the worldwide.
5. We have 10 production lines,and our lead time is within 15 days after received the formal purchasing order.
6. we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing and shipping.
7. We have some contracted forwarder to provide very good shipping cost and fast shipping time to all customers.
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |

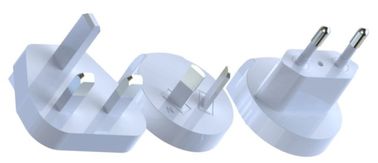

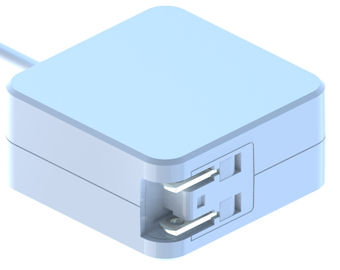

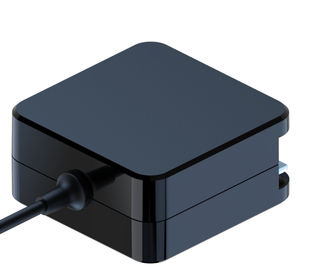

Interchangeable plugs 15W - 24W wall mount adaper picture:
