| Plug Tpye: | EU AC Plug | Input: | 90-264 Vac |
|---|---|---|---|
| Output: | 5-24V/0.5-2.0A | DC Plug: | 5.5X2.5/5.5X2.1 |
| Color: | Black | Material: | PVC |
| DC Cable: | 1.2M 1.5M 1.8M | Package: | White Box + Carbon |
| Highlight: | universal power adapter,universal ac charger |
||
EU Plug 5W 9W 12W Black wall mount universal adapter with CE GS approvals
The wall mount adapter has a univeral input voltage 90 - 264VAC and frequency range 47 - 64 Hz, the output current max 2000Ma, the safety certificates is ETL FCC CE GS CCC PSE and EMC, the adapter was sold to over 50 countries in the world with high quality and more reliable.
Specification of 5W - 12W EU Plug wall mount adapter:
| Voltage Tolerance: | +/-5% |
| Ripple and Noise: | 150 mVp-p max |
| DC cable: | 1.5m standards |
| DC plug size: | 5.5X2.1/5.5X2.5mm |
| Package: | 100pcs/carbon box |
| Gross weight: | 15kgs |
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 5VDC-24VDC |
| Current range: | 500MA -2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
| Efficiency is more than 88% to meet energy star class VI |
| All protections are a must as OVP OCP SCP |
| All materials meet RoHS standard |
| Low ripple and noise can match the standard |
Our advantage:
1. Our pricing is much better than others
2. Our adapters meet international quality standard much as ISO9001 and ISO 14001 to guarantee each adapter good quality.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
4. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines.
5. Our lead time is within 15 days after received the formal purchasing order.
6. Our 30 QC / QA staffs make sure all adapters to pass each testing before packing and shipping.
Main testing before shipment:
1. DC plug pole checking
2. DC output voltage checking
3. Hipot&insulation checking
4. Appearance checking

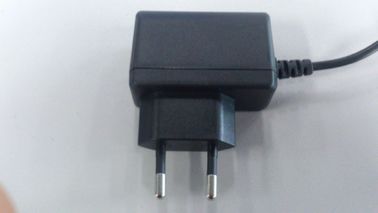

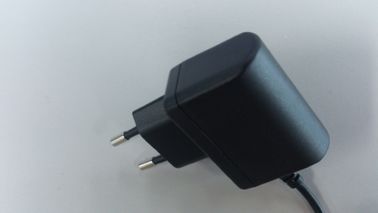

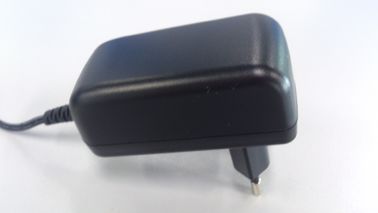

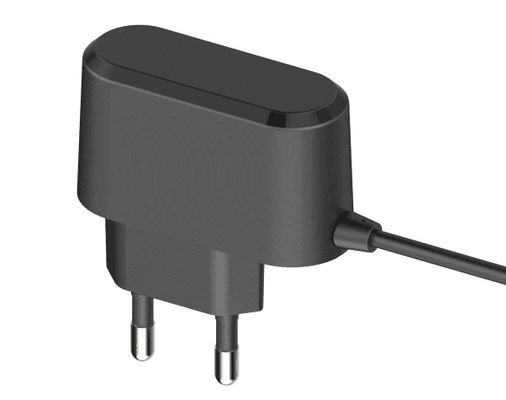

EU Plug 5W 9W 12W wall mount adaper picture:
