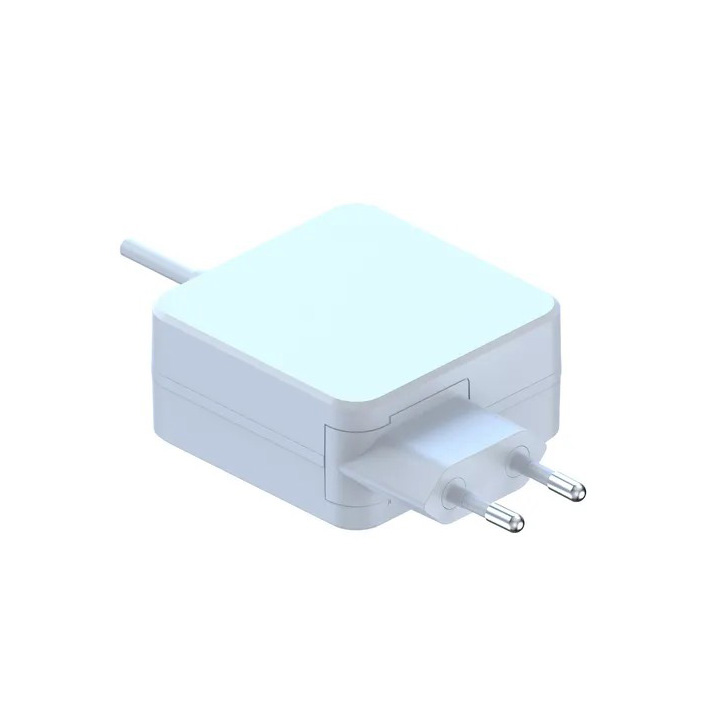

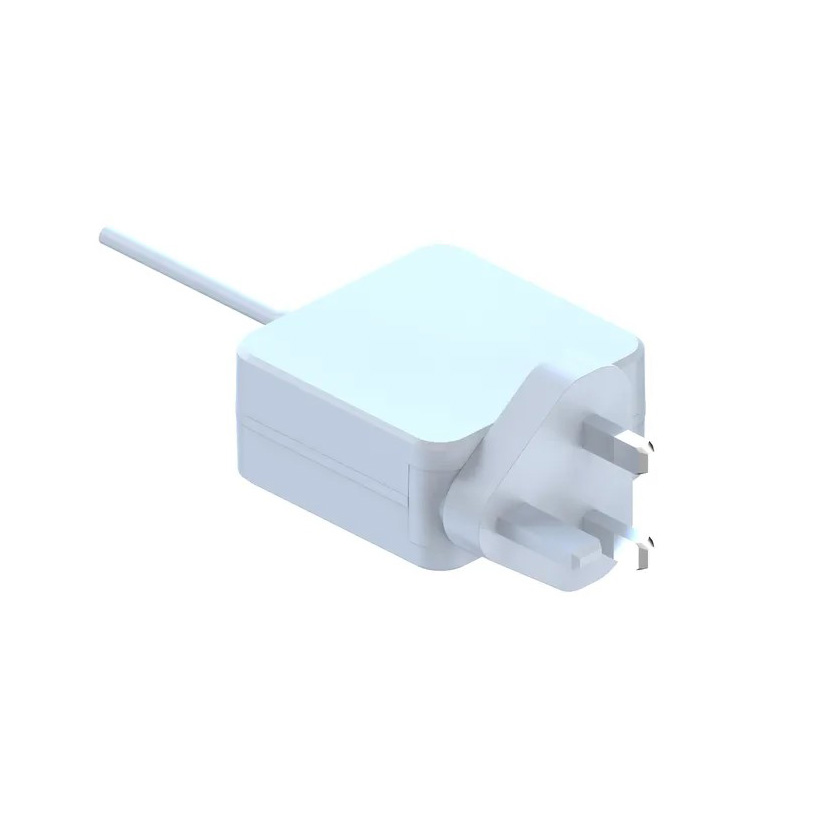

White Color PD power 5v -24C AC DC Power USB Adapter Universal Phone Charger Wall Mounted
description1
Detail Information
Product Description
White 5 - 12V AC - DC Universal Charger for phone charging
Brief description
Specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 2-4 hours | |
| Efficiency: | >83% | |
| MTBF: | 50000 hours | |
| Iusulation: | yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64Hz | |
| Input current: | ||
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 500MA-2000MA | |
| Ripple: | 120mVp-p | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency: energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage
1. Good pricing:most of the materials were produced by ourself at our plant, we can control the cost very well.
2. High quality standard:we strictly follow up the ISO9001 and ISO14001as our quality management system.
3. Better lead time:we have 10 production lines to make sure the lead time is within 15 days.
4. Professional R/D team:OEM and ODM are much warm welcome.
5. Quick response to customer’s requirement should be done by our oversea sales
6. Prefect after - sales service should be provided by our QE
7. We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
8. Our monthly production capacity is 800,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
