|Place of Origin:||Shenzhen guangdong China|
|Minimum Order Quantity:||500pcs|
|Packaging Details:||white box+carbon|
|Delivery Time:||15-20 days after confirmed the order|
|Payment Terms:||T/T, L/C|
|Supply Ability:||800,000pcs per month|
|Product Name:||AC Wall Mount Adapter||Efficiency:||Energy Star Class 6|
|Burn-in:||More Than 4 Hours||Warranty:||2 Years|
|Package:||White Box + Carbon||DC Cable:||1.5m Standard|
ac dc charger adapter,
universal power adapter travel,
18w 5v 2a ac dc power adapter
White 12V 1A 5V 2A AC DC Power Adapter Universal 47 - 63Hz / 1000 - 2000ma
12V 1A 5V 2A universal wall mount adapter
1. Input voltage:90 - 264VAC
2. Input frequency:47- 63Hz
3. Output voltage:5 - 12VDC
4. Output current:1000 - 2000MA
5. Color:white / black
6. Safety licences:UL cUL FCC CE GS PSE CCC
7. Connection:EU CN US UK JP AU
8. DC cable:1.5m
9. DC plug:5.5 x 2.1mm
|Burn-In Test:||100% full load 2-4hours|
|AC Input||voltage range:||90-264VAC|
|Leakage current:||0.25mA max at 240VAC input|
|DC Output||Voltage range:||5 - 12VDC|
|Current range:||1000 - 2000MA|
|Storage Temperature||-20 degrees to 85 degrees|
|Normal Working Temperature||0 degree to 40 degrees|
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
|Video equipemnt||TV box CCTV, router, set-top-box|
|Audio equipment||Speaker, microphone,recording device|
|Communication device||smart phone nootbook,tablet PC|
|Household appliance||air purifier, water purifier,solar panel|
|Medical equipment||cosmetic machine,glucose meter|
|others||PS4,segway,game player, electronic toy|
1. Good pricing:We will adjust the pricing according to the order quantity.
2. High quality standard:we always focus on the quality and fellow ISO 9001 and RoHS
3. Better lead time:15 days is our delivery day after confirmed the purchasing order.
4. Professional R/D team:we have good adaptersa and OEM ODM are available.
5. Quick response to customer’s requirement
6. Our QE department handle any problem from customers.
7. This adapter has pass UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. The most important is our pricing and service is much better than other adapter suppliers.
9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
10. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
11. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
12. We have some contracted forwarders and offer the best shipping cost to all custoers through oceanand air freight.
13. Our goal is that we are your long tern business partner and Win - Win together.

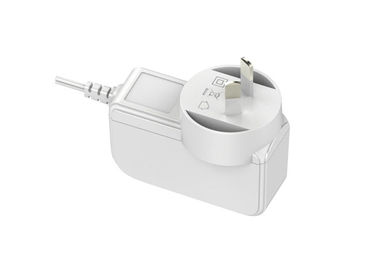

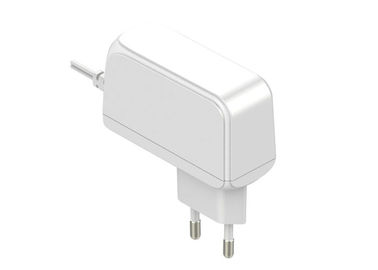

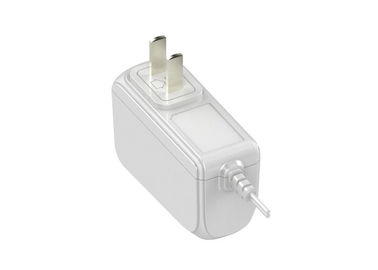

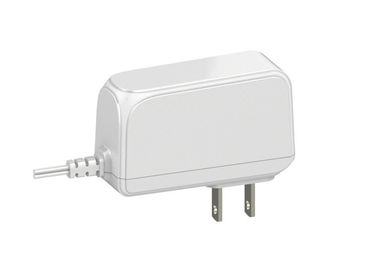

12W universal wall mount adapter picture:
