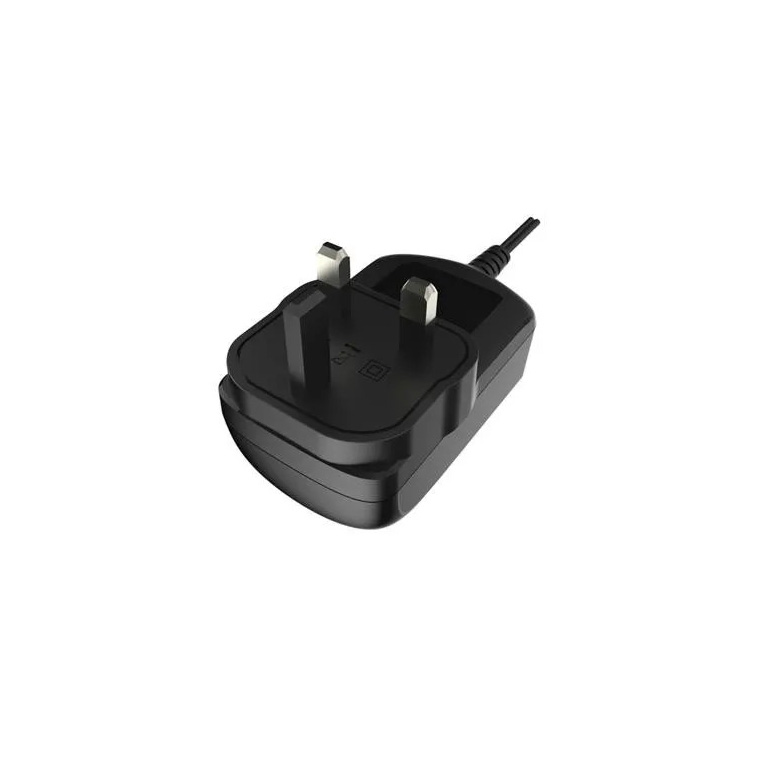

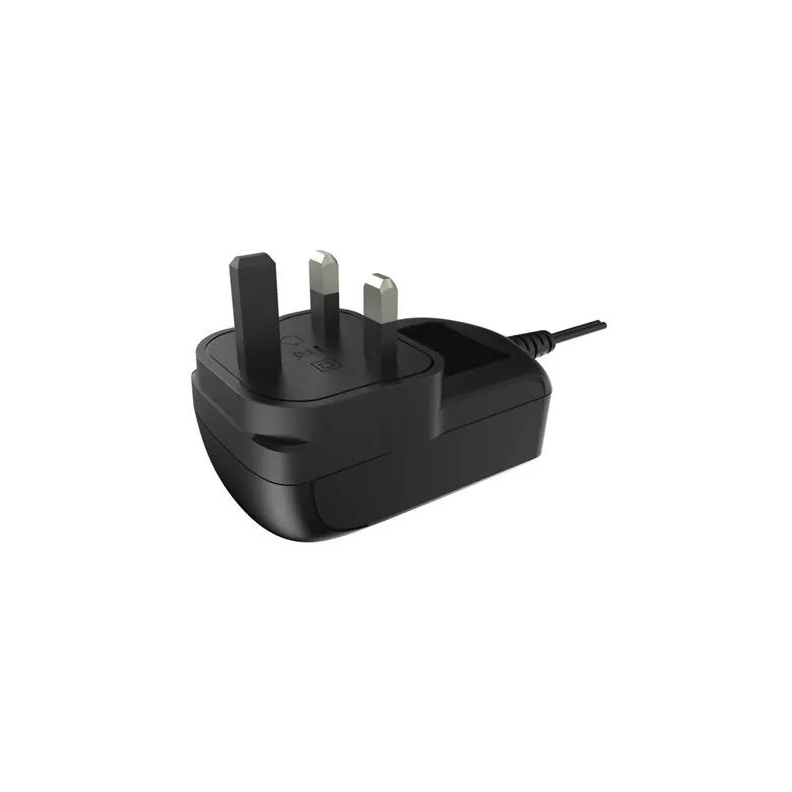

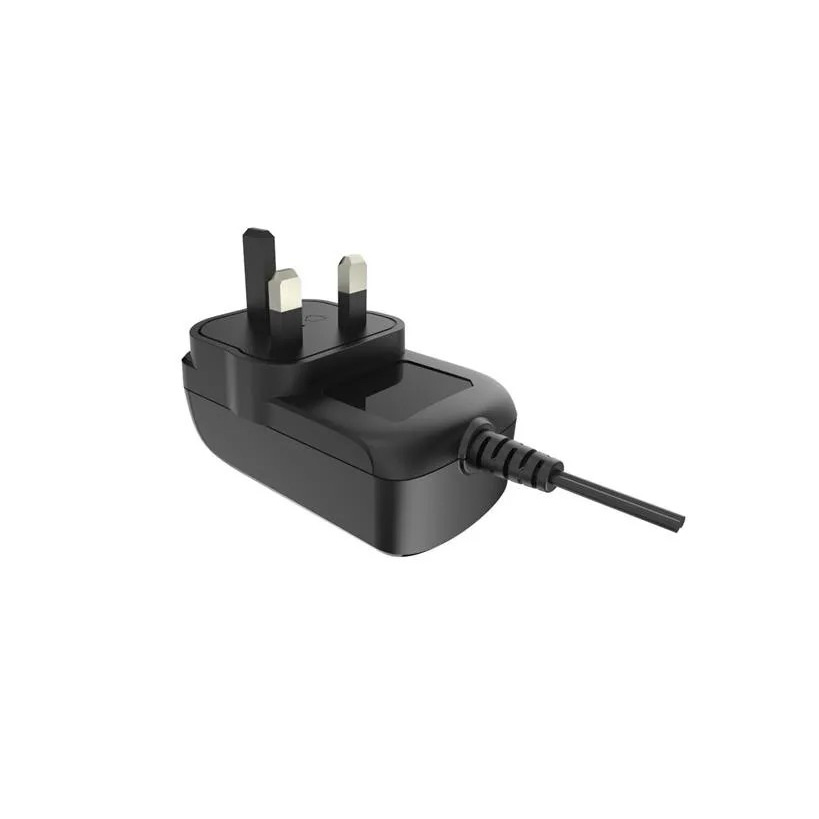

EN60601 24W medical universal power adapter with CE KA PSE CCC approvals
description1
Detail Information
Place of Origin:
Shenzhen, Guangdong, China
Certification:
FCC/EMI/CE/GS/CCC
Color:
Black
Efficiency:
88%
Burn-in:
More Than 4 Hours
Warranty:
2 Years
DC cable:
1.5m
Certificate:
PSE CE CCC FCC
Product Name:
Medical Adapter
Package:
White Bxo + Carbon
Packaging Details:
white box+carbon
Supply Ability:
800,000pcs per month
Highlight:
medical grade power supply, medical power supply
Product Description
EN60601 24W medical universal power adapter with CE KA PSE CCC approvals
Product Details
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:black
Safety licences:PSE KA FCC CE
Connection:plug in
Specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
