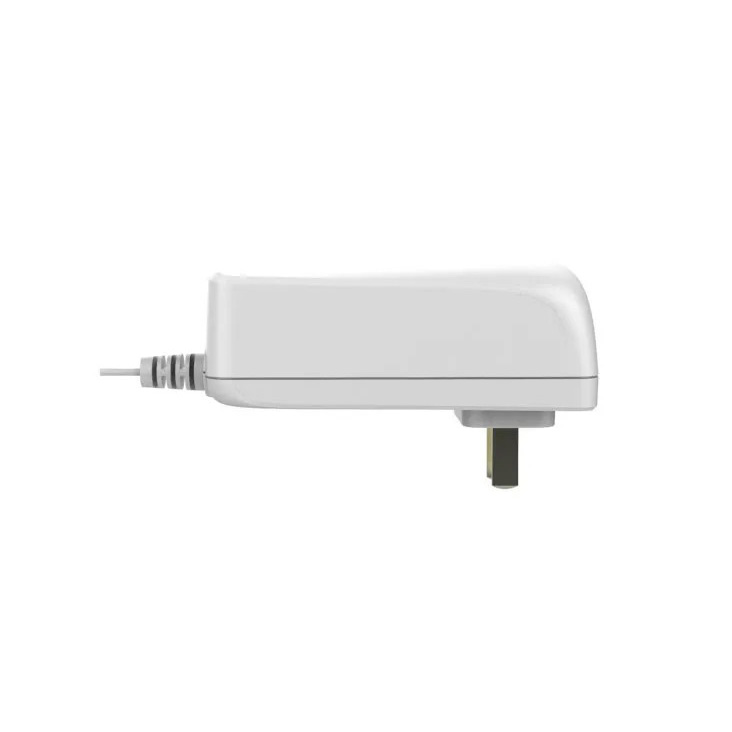

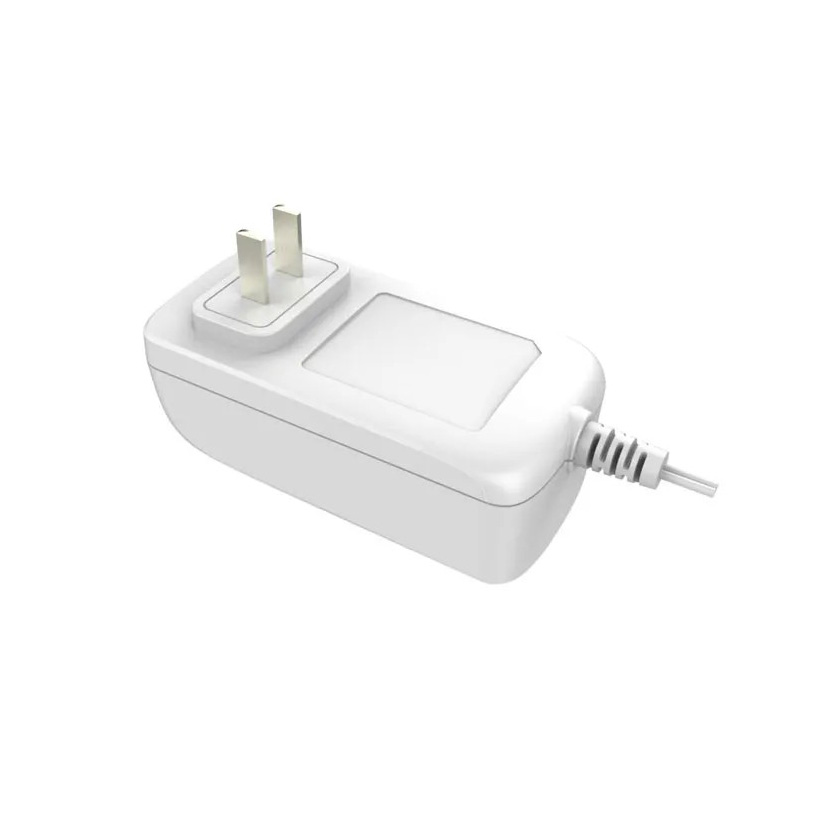

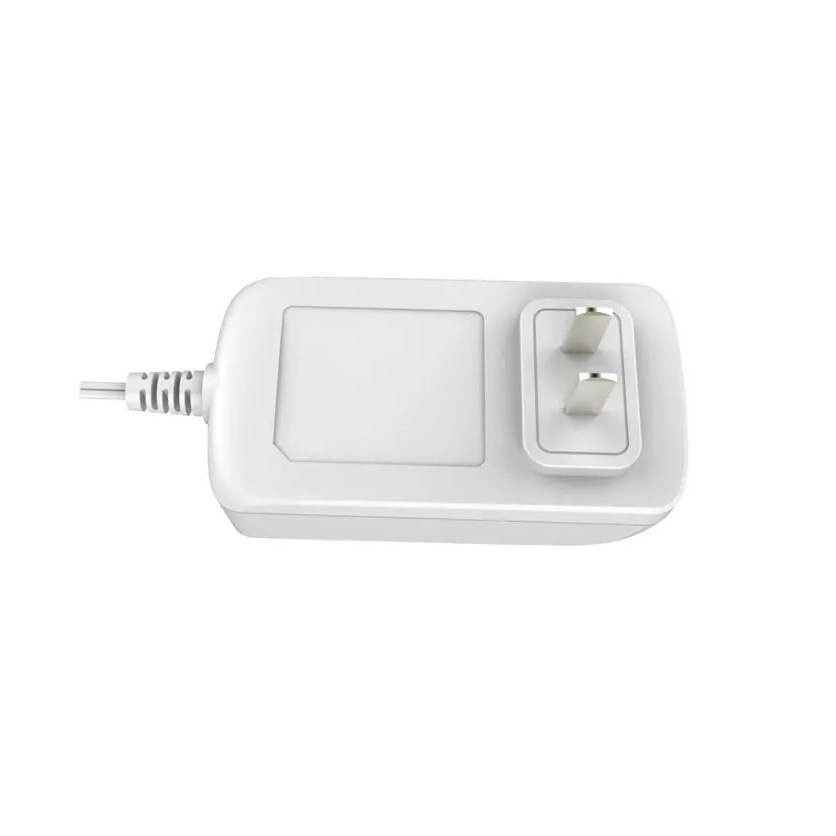

CN AU KA Plug Universal World Wide Travel Adapter Plug 12v 3A White
description1
Detail Information
Place of Origin:
Shenzhen, Guangdong, China
Certification:
FCC/EMI/CE/GS/KA/PSE/CCC
Power Watt:
36w Max
Output:
12v3a 24v1.5a
Color:
Black White
Warranty:
2 Years
MTBF:
50000hours
Burn In:
100% Full Load 4 Hours
AC Plug:
CN JP US EU UK KA AU
Efficiency:
Energy Star VI
Packaging Details:
white box+carbon
Supply Ability:
800,000pcs per month
Highlight:
universal travel charger, universal power adapter travel
Product Description
CN AU KA plugs 12v 3a Universal travel adapter with high energy star class VI
12V 3A / 24V 1.5A universal ac power adapter
Product Details
Input voltage: 90 - 264VAC
Output voltage: 12 - 24VDC
Output current: 1.5 - 2.0A
Colour: white black
Safety licences: CE / GS / SAA / CCC / PSE
Connection: EU AU CN JP US UK
DC cable: 1.5m
DC plug: 5.5X2.5mm
Key specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | Full load for 4 hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64HZ | |
| Input current: | ||
| Inrush current: | ||
| DC Output | Voltage range: | 12-24VDC |
| Current range: | 1500-3000MA | |
| Ripple: | 200mVp-p | |
| Safety Approvals | ETL FCC CE GS CCC PSE KA SAA | |
| Storage Temperature | -20-80 degrees | |
| Normal Working Temperature | 0-40 degrees | |
Features
| 1. High efficiency: >88% |
| 2. Stand by power consumption: 0.1w(max) |
| 3. Low ripple&noise: 150mVp-p(max) |
| 4. Four protection available: OCP,SCP,OVP |
| 5. 2 - 5 pcs free samples are available |
Our competitive advantages
Quick response to customer's requested
High quality standard
Competitive pricing:Our priicing is less than others
our good lead time is around 15 days after comfirmed the PO
Worldwide safety approvals are available
0.1% back up
We manage well the shipping cost to worldwide
