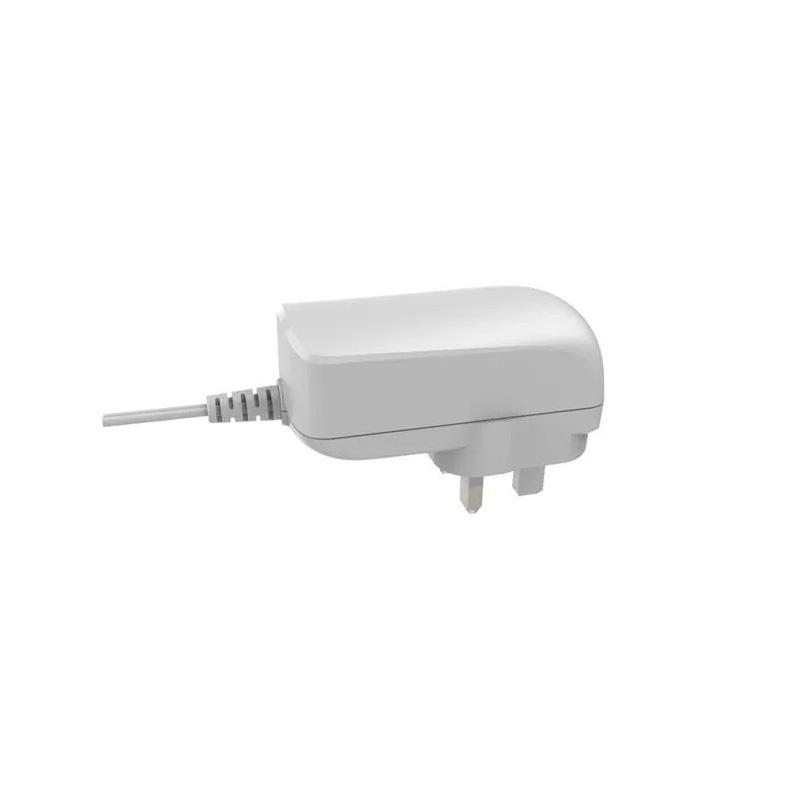

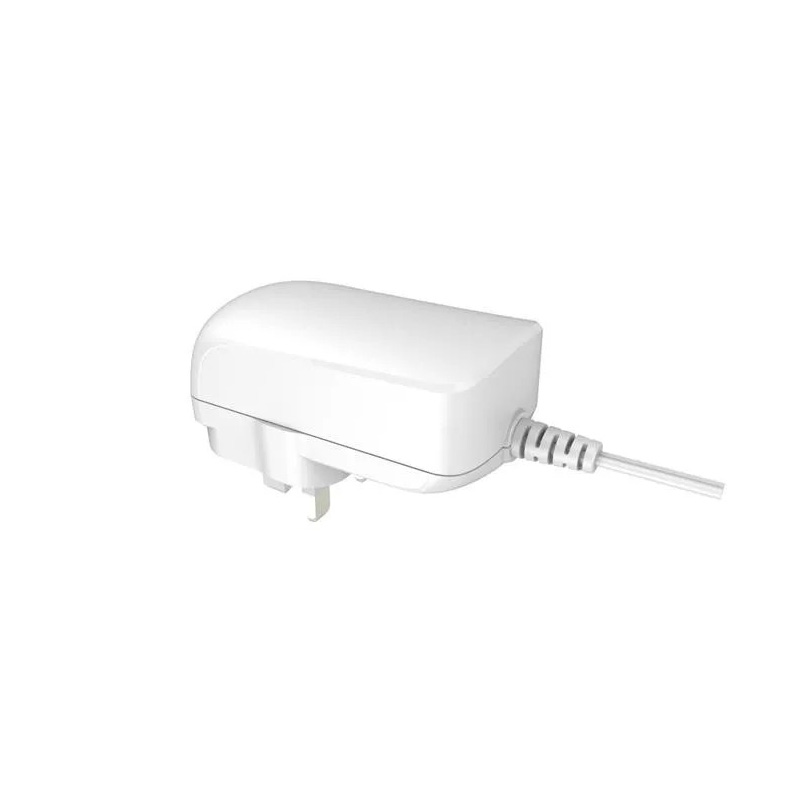

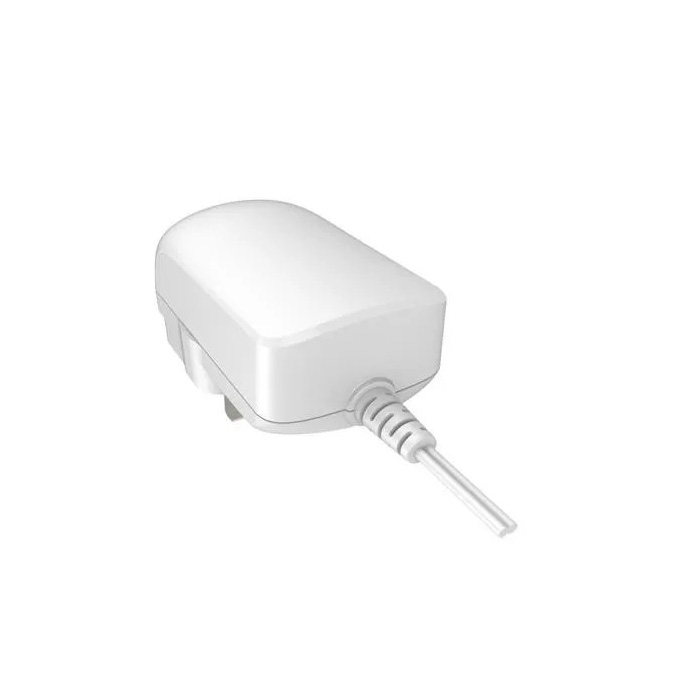

90 - 264 VAC 24W medical Universal Power Adapter With KA PSE CCC CE Approvals
description1
Detail Information
Product Description
90 - 264 VAC 24W medical Universal Power Adapter With KA PSE CCC CE Approvals
Product Details
Specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage
1. Good pricing: we produce most of the materials at our own plant, we can manage the cost very well.
2. High quality standard as ISO9001 and ISO14001.
3. Better lead time is 15 days after we received the order.
4. Professional R/D team
5. Quick response to customer’s requirement within 24 hours.
6. Prefect after-sales service
Brief company profile
This adapter has pass EU60601 safety approvals the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing is much better than others.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
