24W 36W 60W Desktop Power Adapter With Safety UL60950 And EN60950
description1
Detail Information
Product Description

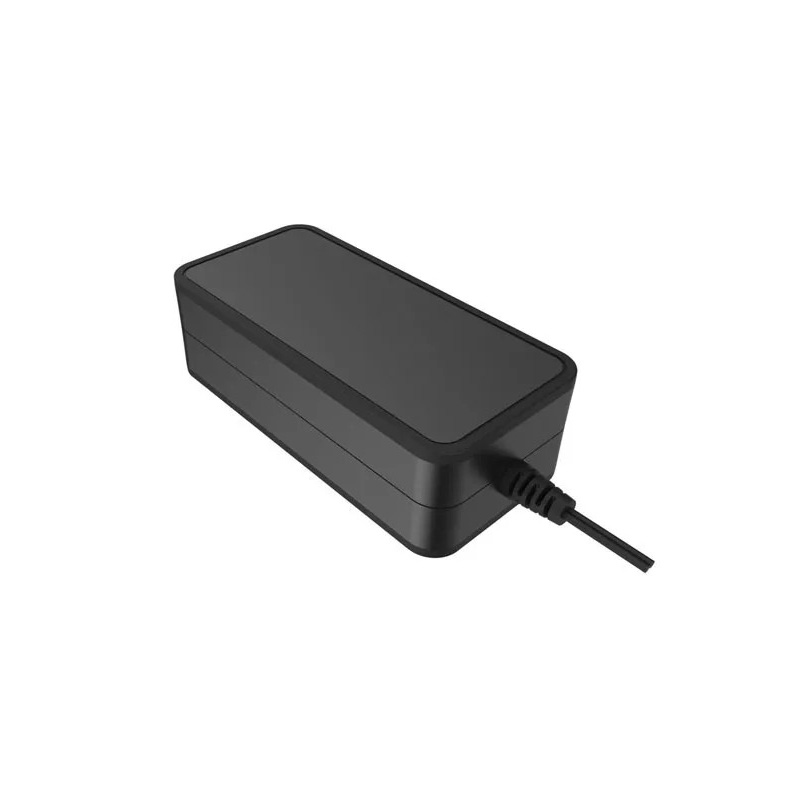

24W 36W 60W Desktop Power Adapter With safety UL60950 and EN60950
36W ITE desk top power supply:
Description:
The desktop universal ac adapter input voltage is 90 - 264vac and frequency is 47 - 63Hz, output is 12v 3a and the max power is 36w.The power supply has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
Input characteristics
Output characteristics
Specification
| Electrical | Hi-pot Test: | 3000VDC |
| Burn-In Test: | 4 Hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Leakage current: | 0.25mA | |
| AC Input | voltage range: | 100- 240vac |
| Input frequency: | 47-64hz | |
| Input current: | 1.5 max | |
| Inrush current: | 30A at 110vac | |
| DC Output | Voltage range: | 12v - 24v |
| Current range: | 1500ma - 3000ma | |
| Ripple: | 120mVp-p | |
| Safety Approvals | UL CUL FCC CE GS CCC KA PSE EMC | |
| Storage Temperature | -20 - 85 degrees | |
| Normal Working Temperature | 0 - 40 degrees | |
Fearture
1. Good qilaity and high stablity
2. High efficiency level
3. Long time and 100% full load burn-in
4. Worldwide approvals are available
Application
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker,recording device |
| Communication device | nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage
1. Our pricing is much better than others, due to we have very strictly purchasing policy to make sure alll materials have high quality and very good cost.
2. We have 10 production lines to make sure our production capacity is 50,000 pcs daily and our lead time is 15 days after we recevied the formal order.
3. Our adapters have 4 times testing before shipping, the qualty is very good and stable.
4. We have more than 30 engineers and we can design good adapter and can provide custom adapter according to customers needs.
5. We have contracted carriers to make sure the best shipping cost and fast shipping.
6. We have QE department to provide very good after sales service.
