18W White Medical Switching Power Supply Wall Mount With AU Plug
description1
Detail Information
Product Description

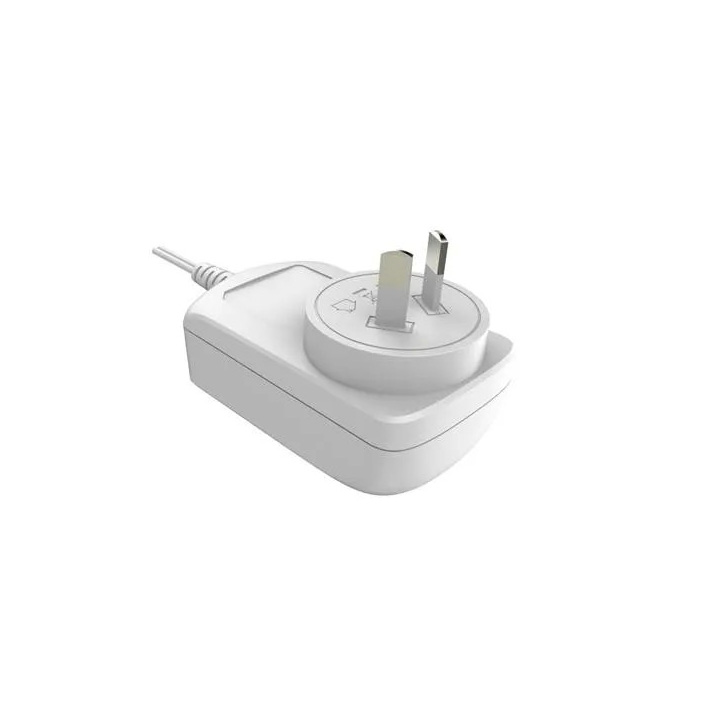

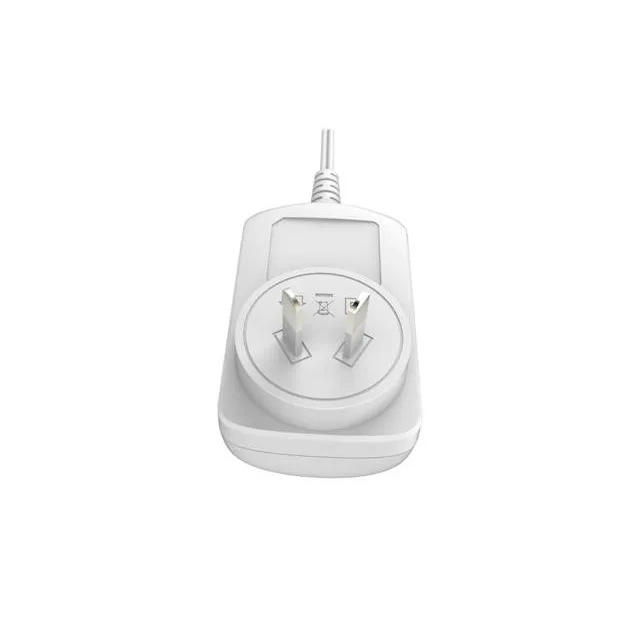

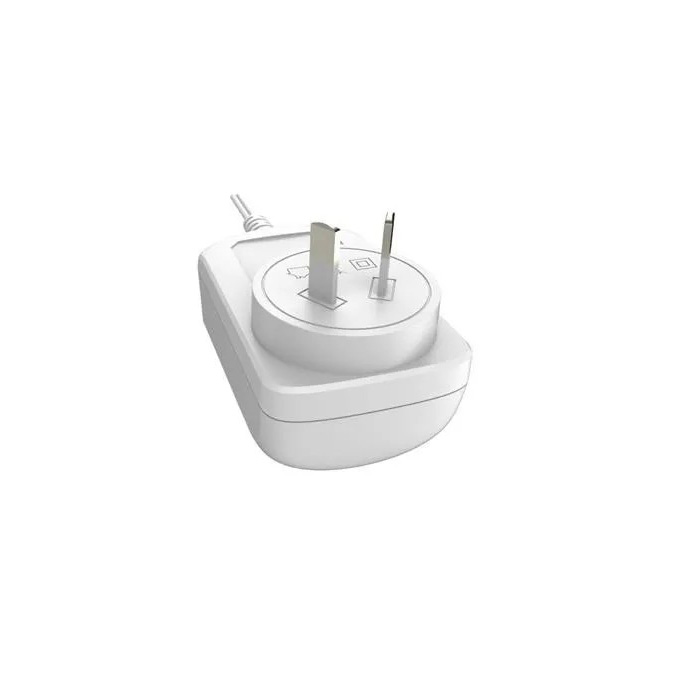

18W white medical wall mount switching power supply with AU plug
18W AU 2PIN wall mount adapter below:
Brief Description
Specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 1500MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL FCC CE GS PSE CCC KA SAA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
5. Customization is high welcome
Application
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage
1. This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world.
2. The most important is our pricing and service is much better than other adapter suppliers.
3. Our lead time is 15 - 25 days after recevied the PO.
4. Our R / D team can design the new adapter according to customer's needs.
5. Our QC / QA staffs check and test each adapter before shipping.
6. We always focus on the quality and servise that cause we can provide good quality adapter and prefect after sales servise.
7. We can offer 0.1% of the total otder quantity adapters to replace the failed adapters during the gearantee period.
