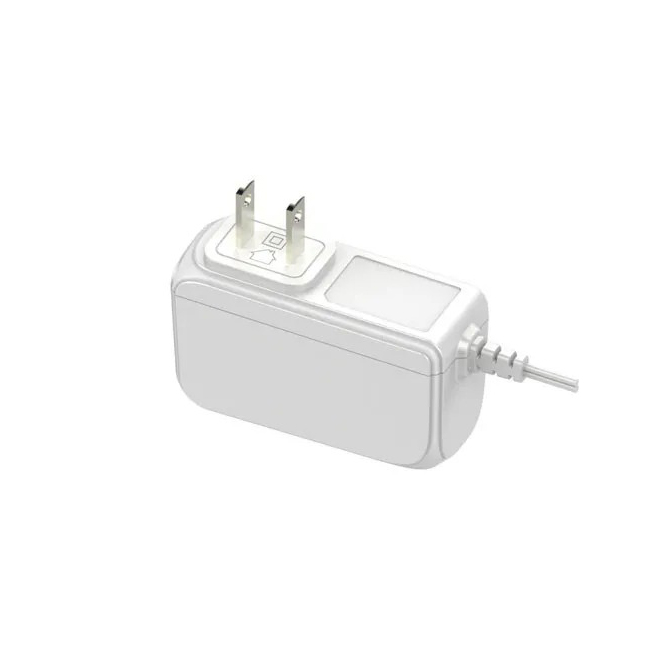

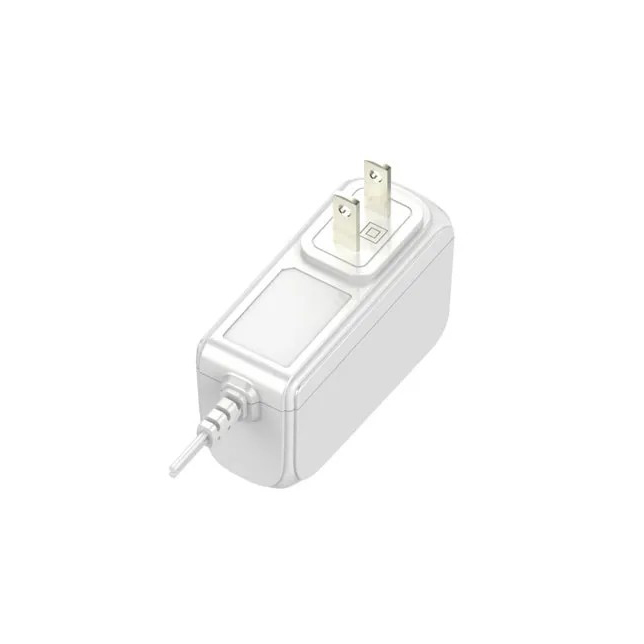

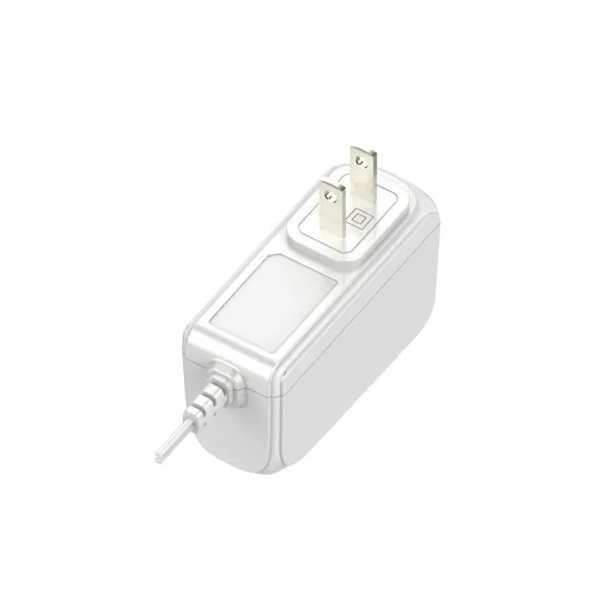

18W Universal External Switching Power Supply With Output 9 - 15V
description1
Detail Information
Place of Origin:
Shenzhen guangdong China
Certification:
UL/CUL/FCC/EMI/CE/GS/KA/PSE/CCC
Product Name:
AC Wall Mount Adapter
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Input:
100-240v
Output:
18W
Package:
White Box + Carbon
DC Cable:
1.5m Standard
Material:
PVC
Output Voltage:
9-15v
Packaging Details:
white box+carbon
Supply Ability:
800,000pcs per month
Highlight:
Ac Dc charger adapter, universal power adapter travel, 1.5m standard AC wall mount adapter
Product Description
18W external switching power supply with output 9 - 15V high
9 - 15V 18W universal wall mount adapter
Brief Description
1. Input voltage: 90 - 264VAC
2. Input frequency: 47 - 63Hz
3. Output voltage: 9 - 15VDC
4. Output current: 1000 - 2000MA
5. Color: white / black
6. Safety licences: UL cUL FCC CE GS PSE CCC
7. Connection: EU CN US UK JP
8. DC cable: 1.5m
Key Specifications
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 9 - 15VDC |
| Current range: | 1000 - 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | UL/CUL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features
1. High efficiency: >83%
2. Stand by power consumption: 0.1w(max)
3. Low ripple&noise: 150mVp-p(max)
4. Four protection available: OLP,OCP,SCP,OVP
