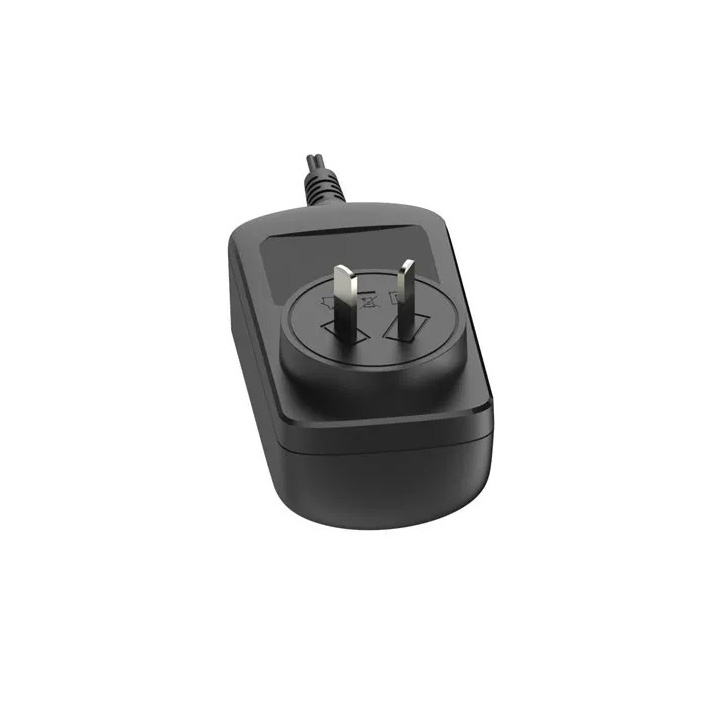

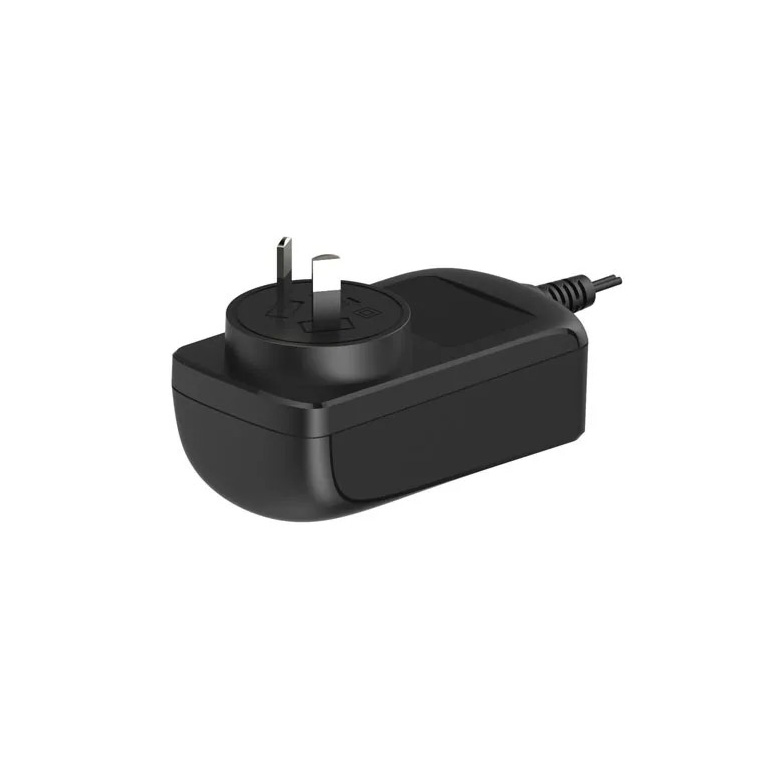

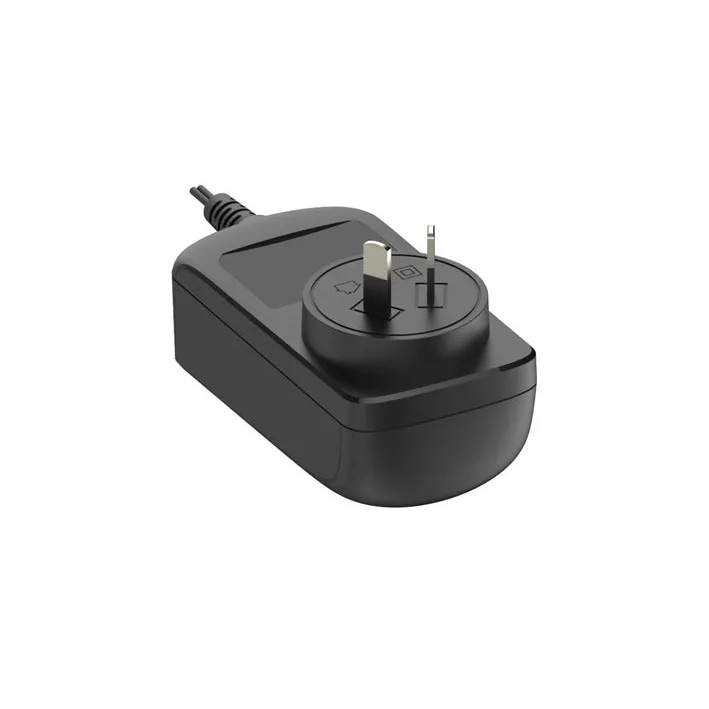

12v 3A Portable Universal Power Adapter Travel With SAA KA Licences
description1
Detail Information
Product Description
Universal AC Power Adapter 12v 3a Universal travel adapter with SAA KA Licences
12V 3A / 24V 1.5A universal ac power adapter below
Product Details
Key specification
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | Full load for 4 hours | |
| Efficiency: | 88% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64HZ | |
| Input current: | ||
| Inrush current: | ||
| DC Output | Voltage range: | 12-24VDC |
| Current range: | 1500-3000MA | |
| Ripple: | 200mVp-p | |
| Safety Approvals | FCC CE GS CCC PSE KA SAA | |
| Storage Temperature | -20-80 degrees | |
| Normal Working Temperature | 0-40 degrees | |
Features
| 1. High efficiency: >88% |
| 2. Stand by power consumption: 0.1w(max) |
| 3. Low ripple&noise: 150mVp-p(max) |
| 4. Four protection available: OCP,SCP,OVP |
| 5. 2 - 5 pcs free samples are available |
Our competitive advantages
Quick response to customer's requested
High quality standard
Competitive pricing:Our priicing is less than others
our good lead time is around 15 days after comfirmed the PO
Worldwide safety approvals are available
0.1% back up
We manage well the shipping cost to worldwide
Application
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,nootbook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Quick profile
1. The 24W universal ac adapter has pass CE / GS / PSE / EMC/ KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.
3. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
4. Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
5. All adapters have 4 times checking and quality testing before shipping.
6. In order to satisfy customers need, OEM and ODM are hjghly welcome.
7. We have some contracted forwarders to carry up the shipping with very good shipping cost.
