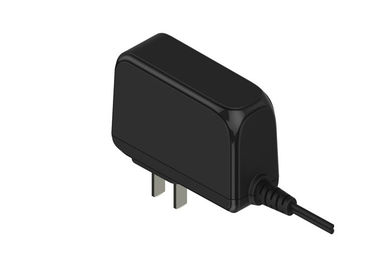

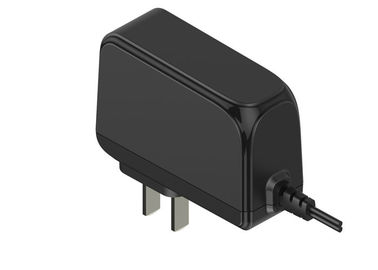

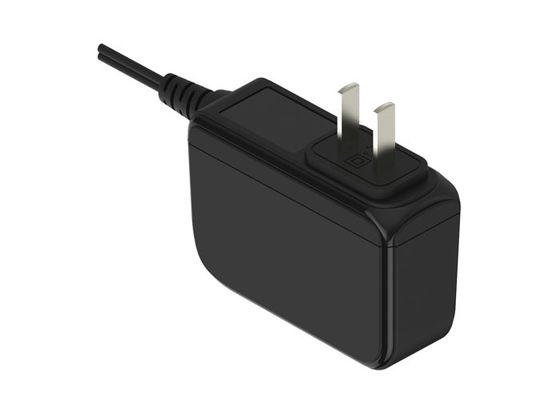

12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router

China 12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router supplier
12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router supplier 12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router supplier 12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router supplier

Large Image :  12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router

Product Details:

Place of Origin: Shenzhen guangdong China
Brand Name: REEU
Certification: UL/cUL/FCC/EMI
Model Number: 24VA-U

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotition
Packaging Details: white box+carbon
Delivery Time: 15-20 days after confirmed the order
Payment Terms: T/T, L/C
Supply Ability: 800,000pcs per month
Contact Now
Detailed Product Description
Color: White/black Efficiency: Energy Star Class 6
Burn-in: More Than 4 Hours Warranty: 2 Years
MTBF: 50000hours Material: PVC
Product Name: Ac Adapter Place Of Origin: China
Output Power: 24W AC Plug: CN

12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router



24W CN 2PIN wall mount adapter



Brief Description:

Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output voltage:12VDC

Output current:2000MA

Colour:white / black

Safety licences:UL / cUL / FCC / CCC

Connection:plug in



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 2000MA
Ripple: 150mVp-p Max
Safety Approvals UL/CUL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features:



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. We have our own materials producing department, so our cost is much better.

2. We strictly follow up ISO9001 and ISO14001 as our quality management system.

3. Our lead time is 15 days after confirmed the PO

4. Professional R/D team

5. Quick response to customers requirement within 24 hours.

6. Prefect after - sales service should be provided by our QE.

7. This adapter has pass UL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



8. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R /D  team has 20 experience and we have professional management in QC, purchasing and production.



9. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.



10. Our monthly production capacity is 100,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.



12V 2A wall mount adapter

12V 2A AC DC Power Adapter With China Plug Switching Power Adapter For Router
