100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin
  • 100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin
  • 100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin
  • 100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin
  • 100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin

100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/KA/PSE/CCC
Model Number 36VA
Product Details
Product Name:
AC Wall Mount Adapter
Efficiency:
Energy Star Class 6
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Input:
100-240v
Output:
36W
Package:
White Box + Carbon
DC Cable:
1.5m Standard
High Light:

universal ac charger

,

ac universal power adapter

,

class 6 universal ac adapter charger

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

100-240VAC 12V 3A US CN pin universal AC power adapter wall mount with ETL / FCC  / CCC certificate



12V 3A CN 2PIN wall mount adapter


Brief Description:

Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:12VDC
Output current:3000MA
Colour:white / black
Safety licences:ETL FCC CE GS PSE CCC
Connection:CN plug in

DC cable:1.5m


Specification:


Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 3000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees


Features:



1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP



Competitive advantage:



1. Good pricing:We will adjust the pricing according to the order quantity.

2. High quality standard:we always focus on the quality and fellow ISO 9001 and RoHS

3. Better lead time:15 days is our delivery day after confirmed the purchasing order.

4. Professional R/D team:we have good adaptersa and OEM ODM are available.

5. Quick response to customers requirement

6. Our QE department handle any problem from customers.

7. This adapter has pass ETL/CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.



8. The most important is our pricing and service is much better than other adapter suppliers.



9. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.



10. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.



11. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.


12. We have some contracted forwarders and offer the best shipping cost to all custoers through oceanand air freight.

 13. Our goal is that we are your long tern business partner and Win - Win together!

 Application:


Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toy

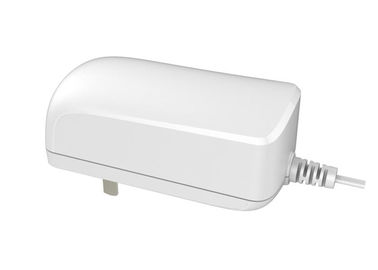

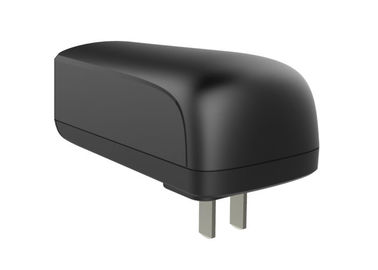

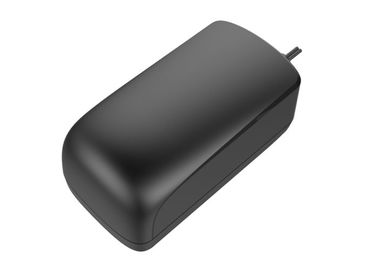

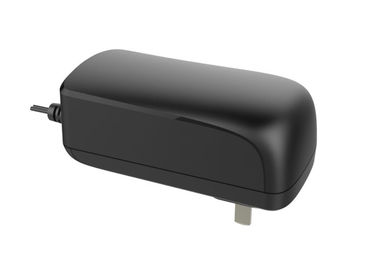

12V 3A CN plug wall mount adapter picture:
 100 - 240VAC Universal AC Power Adapter 3A 12 Volt Power Adapter US CN Pin 0
