AC DC Power Adapter
>
|
| Place of Origin | Shenzhen guangdong China |
| Brand Name | REEU |
| Certification | ETL FCC EMI CE GS KA PSE CCC SAA |
| Model Number | 24VA |
White UK plug 12V 2A ac dc wall mount power adapter with CE GS LVD approval
24V 1A 12V 2A UK PIN wall mount adapter below:
Brief Description:
1. Input voltage:90 - 264VAC
2. Input frequency:47 - 63Hz
3. Output voltage:12VDC
4. Output current:2000MA
5. Colour:white / black
6. Safety licences:ETL / FCC / CE / GS
7. Connection:UK plug in
8. Package: white box + carbon
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2 - 4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90 - 264VAC |
| Input frequency: | 47 - 63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL FCC CE GS PSE CCC KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. Good pricing
2. High quality standard
3. Better lead time
4. Professional R/D team
5. Quick response to customer’s requirement
6. Prefect after-sales service
7. 3 - 5 pcs free samples are available

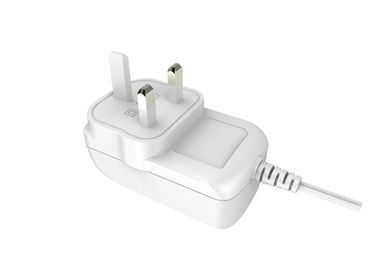

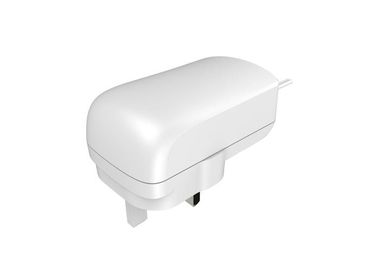

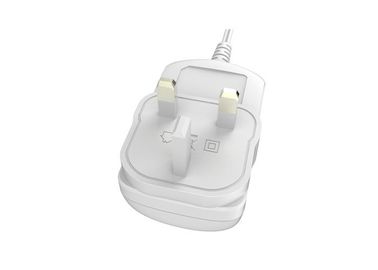

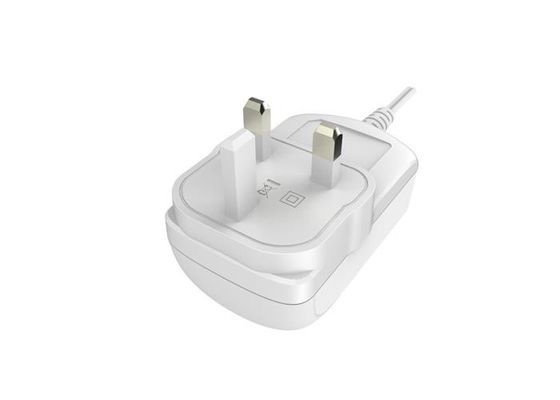

24W UK plug wall mount adaper picture:
