Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter

Certification
Good quality Universal AC Power Adapter for sales
Good quality Universal AC Power Adapter for sales
We have over 8 years cooperation with RUIYU Tech which is one of the best adapters suppliers we can BELIEVE. MAY International from USA

—— TRVOR JAMES

At RUIYU Tech, you can find what you need and what you really want to buy.Quality and Pricing are much better! Mikro Tech from EU

—— Mark Harding

I'm Online Chat Now

Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter

China Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter supplier
Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter supplier Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter supplier

Large Image :  Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter

Product Details:

Place of Origin: Shenzhen guangdong China
Brand Name: REEU
Certification: UL/cUL/FCC/EMI/CE/GS/KA/PSE/CCC
Model Number: 24VA

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: negotiation
Packaging Details: white box+carbon
Delivery Time: 15-20 days after confirmed the order
Payment Terms: T/T, L/C
Supply Ability: 800,000pcs per month
Detailed Product Description
Product Name: Ac Power Adapter Efficiency: Energy Star Class 6
Burn-in: More Than 4 Hours Warranty: 2 Years
Input Voltage: 90-264V Output Power: 24W
Color: Black AC Plug: AU
Materials: PVC Package: White Box + Carbon

18W black AU 2PIN wall mount power adapter with input 90 - 264Vac



AU 2PIN wall mount power adapter


Brief Description:


The universal ac dc power adapter is a single range of the input voltage 90-264Vac and the output power is 24W, the output current can be changed according to the needs, but max is 2000ma.the adapter has OCP OCP SCP function to protect the adapter during working.the adapter has passed universal safety approvals and sold to around 50 countries in the world.



Main parameters:


Input voltage:90 - 264VACer adapter
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:1500MA
Colour:black
Safety licences:UL cUL FCC CE GS PSE CCC AU
Connection:AU plug in


Specification:


Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 1500MA
Ripple: 150mVp-p Max
Safety Approvals UL/CUL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees


Features:


1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OCP,SCP,OVP
5. Free samples are available for the function testing



Competitive advantage:



we have 10 production lines and the lead time is 15 days only
Our adapters passed all safety licences, and satisfy all customers needs
we have our own adapters, but OEM is highly welcome
We have long time partnership vendors, the pricing is much better
Our oversea sales will handle all issues from customers within 24 hours.

Our after sales service is effective and friendly.




 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys






Who we are:



We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

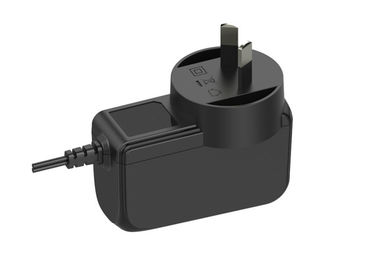

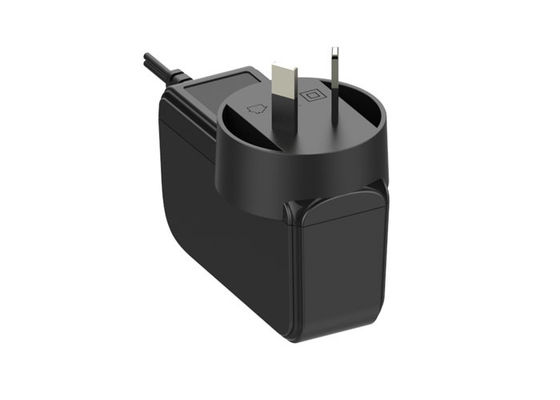

18W AU plug wall mount adaper picture:


Black 18W AU 2PIN AC DC Power Adapter 90 - 264Vac Input Wall Mount Power Adapter
