Desktop Switching Power Supply
>
|
| Place of Origin | Shenzhen Guangdong China |
| Brand Name | REEU |
| Certification | CE/GS/PSE/KA/CCC/FCC |
| Model Number | 18D |
12 VAC desktop universal switching power adapter 18W with CE PSE CCC safety
Adapter Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 1.5-3.0A | |
| Ripple: | 150mVp-p max | |
| Safety Approvals | FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Our competitive advantage:
| good pricing |
| quick respone to custoer's requested |
|
better lead time |
| prefect after sales service |
| professional management team |
| high quality standard |
Our company feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Why can you choose us?
This adapter has pass CE/GS/PSE/EMC/KA/CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R/D team has 10-20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC/QA staff to make sure all adapters have passed each testing before packing.
Q&A:
Q:May I get some free samples for testing?
A:Sure.According to our company rules, we can offer 2 pcs free samples and we are free of the air freight.
Q: What is the lead time of the samples?
A:Normally it is 3-5 days
Q:What is the lead time of the mass order?
A:It is around 15-20 days
Q:What will do if the adapter has any problem?
A:We will make up the same adapter for replacement.

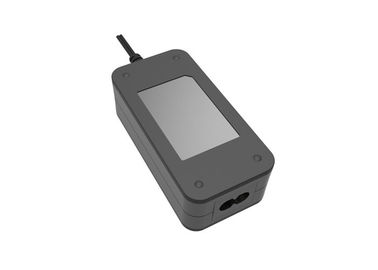

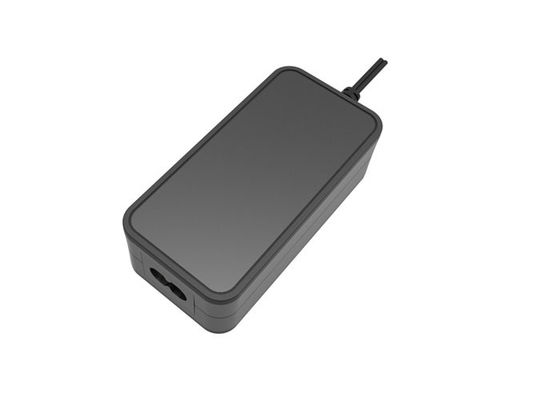

12V1.5A desktop power adapter picture view:
