90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC
  • 90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC
  • 90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC
  • 90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC
  • 90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC

90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC

Place of Origin Shenzhen guangdong China
Brand Name REEU
Certification ETL/FCC/EMI/CE/GS/CCC
Model Number 24VA
Product Details
Color:
Black
Efficiency:
88%
Burn-in:
More Than 4 Hours
Warranty:
2 Years
DC Cable:
1.5m
Certificate:
KA PSE CCC
Product Name:
Ac Dc Adapter
Package:
White Box + Carbon
Input:
100-240v
Output:
12v2a
High Light:

power supply switching

,

power supply switching

,

2000MA ac dc switching adapter

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotition
Packaging Details
white box+carbon
Delivery Time
15-20 days after confirmed the order
Payment Terms
T/T, L/C
Supply Ability
800,000pcs per month
Product Description

90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC



24W AC - DC universal power adapter





Product Details:



Input voltage:90 - 264VAC

Input frequency:47 - 63Hz

Output voltage:12VDC

Output current:2000MA

Colour:black

Safety licences:KA PSE CCC

Connection:plug in



Specification:



Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4hours
Efficiency: 86%
MTBF: 50000 hours
Warranty 2 years
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A
Leakage current: 0.25mA max at 240VAC input
DC Output Voltage range: 12VDC
Current range: 2000MA
Ripple: 150mVp-p Max
Safety Approvals ETL/FCC/CE/GS/PSE/CCC/KA
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees



Features



1. High efficiency:>83%

2. Stand by power consumption:0.1w(max)

3. Low ripple&noise:150mVp-p(max)

4. Four protection available:OLP,OCP,SCP,OVP



 Application:



Video equipemnt TV box CCTV, router, set-top-box
Audio equipment Speaker, microphone,recording device
Communication device smart phone nootbook,tablet PC
Household appliance air purifier, water purifier,solar panel
Medical equipment cosmetic machine,glucose meter
others PS4,segway,game player, electronic toys



Competitive advantage:



1. Good pricing

2. High quality standard

3. Better lead time

4. Professional R/D team

5. Quick response to customers requirement

6. Prefect after-sales service



Brief company profile:



Our adapters have passed ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

The most important is our pricing and service is much better than other adapter suppliers.

We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

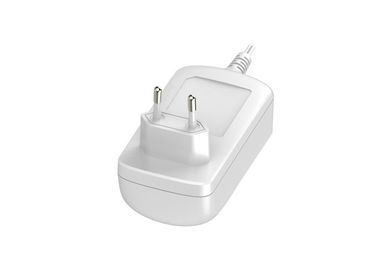

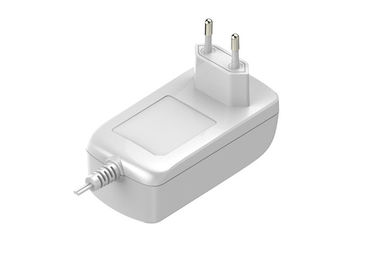

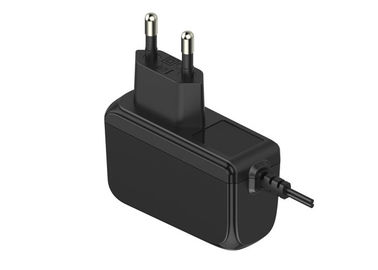

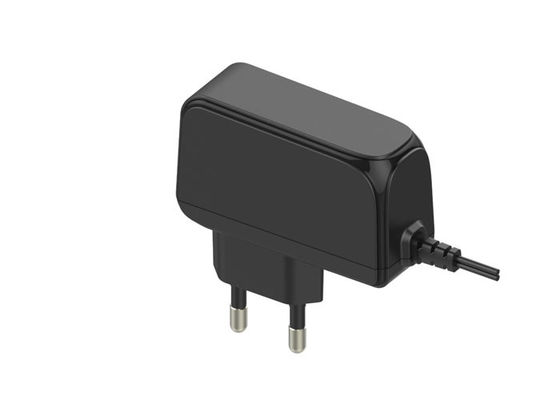

12V 2A universal ac dc wall mount power adaper picture:



90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC 0



90 - 264VAC 24W 2A 12v Switching Power Supply Wall Mount AC DC 1
