Wall Mount Power Adapter
>
|
| Place of Origin | Shenzhen guangdong China |
| Brand Name | REEU |
| Certification | FCC/EMI/CE/GS/KA/PSE/CCC |
| Model Number | 36VA-V |
3A 36W Black Wall Mount 12v Wall Adapter 3000ma With CN Plug 2 Pin
12V 3A CN 2PIN wall mount adapter
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:3000MA
Colour:black
Safety licences:CE KA FCC CCC PSE
Connection:US plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 3000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OLP,OCP,SCP,OVP
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Competitive advantage:
1. We have our own materials production lines, we can better control the cost.
2. High quality standard as ISO series and safety approval
3. Better lead time is within 18 days after confirm the order
4. Professional R/D team
5. Quick response to customer’s requirement within 24hours by sales
6. Prefect after-sales service
Why can you trust us?
1. This adapter has pass CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
2. The most important is our pricing and service are much better than other adapter suppliers.
3. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter.
4. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
5. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
6. Our monthly production capacity is 1,000,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

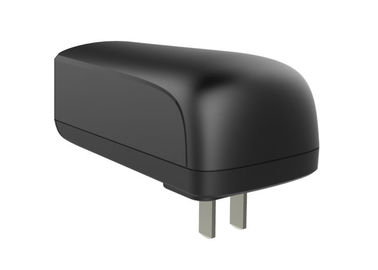

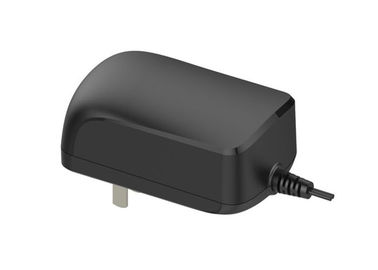

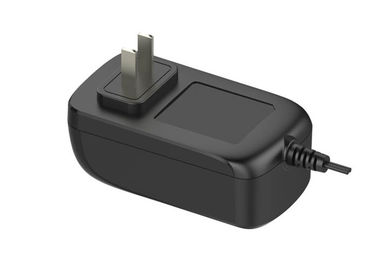

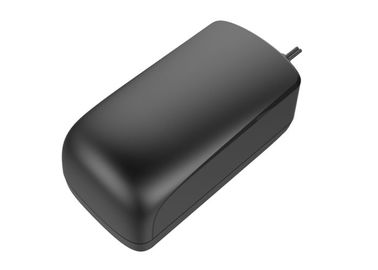

12V 3A CN plug AC wall mount power adapter picture:
