45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals
  • 45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals
  • 45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals
  • 45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals
  • 45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals

45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals

Place of Origin Shenzhen Guangdong China
Brand Name REEU
Certification ETL/CE/GS/PSE/KA/CCC/FCC
Model Number 45AV
Product Details
Safety Licences:
ETL/CE/GE/PSE/CCC/FCC/KA/EMI
Output:
24v1.9a
Burn-in:
More Than 4 Hours
Warranty:
2 Years
Power Watt:
45w Max
Product Name:
Wall Mount Adapter
MTBF:
50K Hours
Package:
White Box
High Light:

universal ac dc power adapter

,

universal power adapter travel

,

pse approvals universal ac power adapter

Payment & Shipping Terms
Minimum Order Quantity
500pcs
Price
negotiation
Packaging Details
white box+carbon
Delivery Time
15-20 days
Payment Terms
T/T, L/C
Supply Ability
500,000pec per month
Product Description

45W 24V 1.9A black universal AC power adapter with ETL FCC CE GS PSE approvlas



Brief description:



Product name:wall mount switcing power supply



Input voltage:90 - 264VAC

Output voltage:24V

Output current:1900MA

Colour:black

Connection:plug in

Safety approval:ETL / CE / PSE / CCC / SAA

Warranty:2 years

Place of origin:Shenzhen China



Specification:





Electrical Hi-pot Test: 3000VAC
Burn-In Test: 100% full load 2-4 hours
Efficiency: 86%
MTBF: 50000 hours
Iusulation: Yes
AC Input voltage range: 90-264VAC
Input frequency: 47-63Hz
Input current: 0.8A max
Inrush current:
DC Output Voltage range: 24VDC
Current range: 1900mA
Ripple: 200mVp-p max
Safety Approvals ETL/FCC/CE/GS/KA/PSE/CCC/EMC
Storage Temperature -20 degrees to 85 degrees
Normal Working Temperature 0 degree to 40 degrees





Feature:



1. High efficiency:energy star class 6

2. Low ripple and noise

3. more than 4 hours 100% full load burn-in

4. Warranty 2 years

5. MTBF 50000 hours

6. Efficiency:88%



Application:



1. LED screen, TV set,

2. AV equipment and other device

3. House appliance

4.Water purifier and ari purifier



Competitive advantage:



1. Good pricing

2. High quality standard

3. Better lead time

4. Professional R/D team

5. Quick response to customer’s requirement

6. Prefect after-sales service



Quick company profile:



This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.

The most important is our pricing and service is much better than other adapter suppliers.

We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.

We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.

Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.

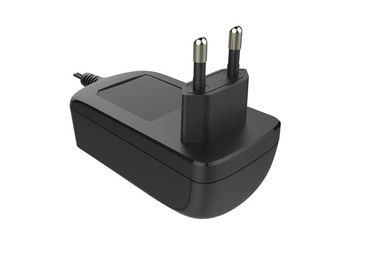

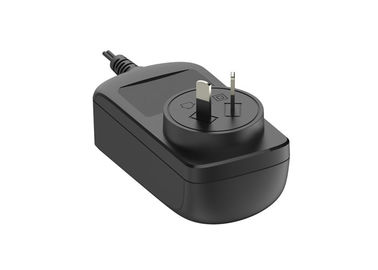

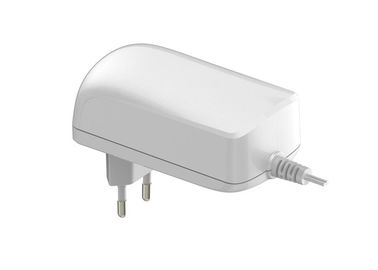

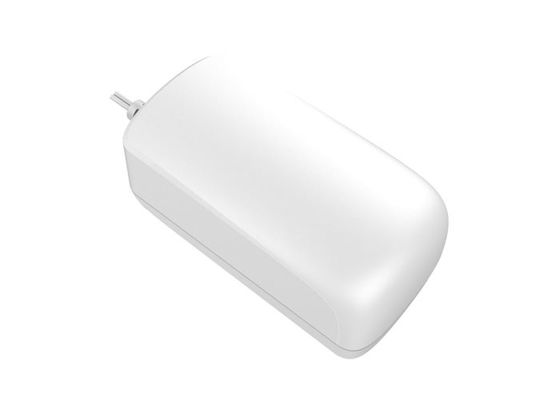

24V 1.9A universal AC - DC power adapter picture view:

45W 24V 1.9A Universal AC DC Power Adapter With ETL FCC CE GS PSE Approvals 0
